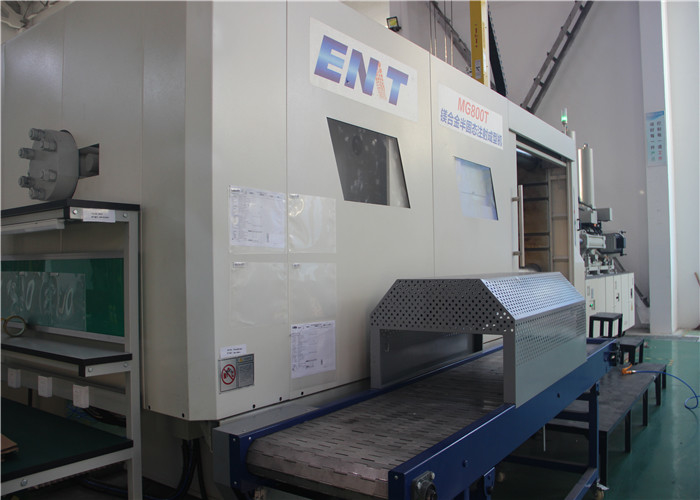

MG-800 Small Injection Molding Machine 8000KN Alloy Thixomolding Magnesium

Markenbezeichnung:	EMT
MOQ:	Verkäuflich
Preis:	negotiable
Zahlungsbedingungen:	T/T, Western Union
Versorgungsfähigkeit:	50000PCS /Month

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

TS16949、IOS9001

Betrieblich:

Sicherheit

Material:

Magnesiumlegierung

Produktionskapazität:

hoch

Maße:

Kunde erfordert

Energieeinsparung:

Einspritzungsgeschwindigkeit:

schnell

Verpackung Informationen:

Entsprechend Kundenbedarf

Versorgungsmaterial-Fähigkeit:

50000PCS /Month

Hervorheben:

8000KN small injection molding machine

MG-800 small injection molding machine

alloy thixomolding magnesium

Produktbeschreibung

MG-800 Small Injection Molding Machine 8000KN Alloy Thixomolding Magnesium

Mg-800 magnesium alloy semi-solid injection molding machine

Technical parameters

No.	Description	Unit	MG-800
I. Mold locking
1	Mold locking force	kN	8000
2	Mold lock stroke	mm	800
3	Mold thickness (minimum to maximum)	mm	380-1000
4	Clamping plate dimension (horizontal × vertical)	mm	1470x1480
5	Column spacing (horizontal × vertical)	mm	940×940
6	Way of mold installation		T-groove way
II. Injection
1	Screw diameter	mm	92
2	Injection pressure	MPa	105
3	Theoretical injection volume	cm³	1994
4	Theoretical injection mass	g	2911
5	Theoretical injection rate	cm³∕s	30578
6	Screw’s maximum injection speed	m∕s	5
7	Screw’s rotation speed	r∕min	10-300
8	Injection stroke	mm	300
9	Injection nozzle dimension	mm	φ20×R35
10	Injection nozzle inlet	mm	75
11	Injection nozzle contact force	kN	480
12	Injection device position	mm	0,-175
I. Others
1	Systematic operating pressure	MPa	16
2	Ejection force	kN	250
3	Ejection stroke	mm	150
4	Electric motor power	kW	55
5	Heater’s output power	kW	50
6	Melting servo motor power	kW	42
7	Total electric capacity	kW	150
8	Oil tank capacity	L	1000
9	Machine weight	kg	43000
10	Machine’s overall dimension (L×W×H)	m	10.5x2.3x3.3

Packaging & Shipping:

1. Package:standard export packing or as per your requirement.

2. Delivery time and method:usually within 30 days by sea.

3. Port of loading:Jiangsu(China)

4. Payment:30% TT in advance,70% TT before delivery;or Irrevocable LC at sight.

MG-800 Small Injection Molding Machine 8000KN Alloy Thixomolding Magnesium 0

MG-800 Small Injection Molding Machine 8000KN Alloy Thixomolding Magnesium 1

MG-800 Small Injection Molding Machine 8000KN Alloy Thixomolding Magnesium 2

Advantage:

FAQ:

1. Q:Are you a factory or a trading company?

A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.

2. Q: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality control.

3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?

A: Yes, with written standard procedures.

4. Q: Is there a procedure to conduct random product inspections after final packaging?

A: Yes, with clear standard and written inspection records.

5. Q: How can I get a quotation?

A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)

6. Q: What is your payment terms?

A: T/T, Western Union, etc.
